Relé de corrente residual RC223 (tipo B)

ABB

Relé de corrente residual RC223 (tipo B)

Publicado: 9 de agosto de 2013 · Categoria: White Papers

Deste documento

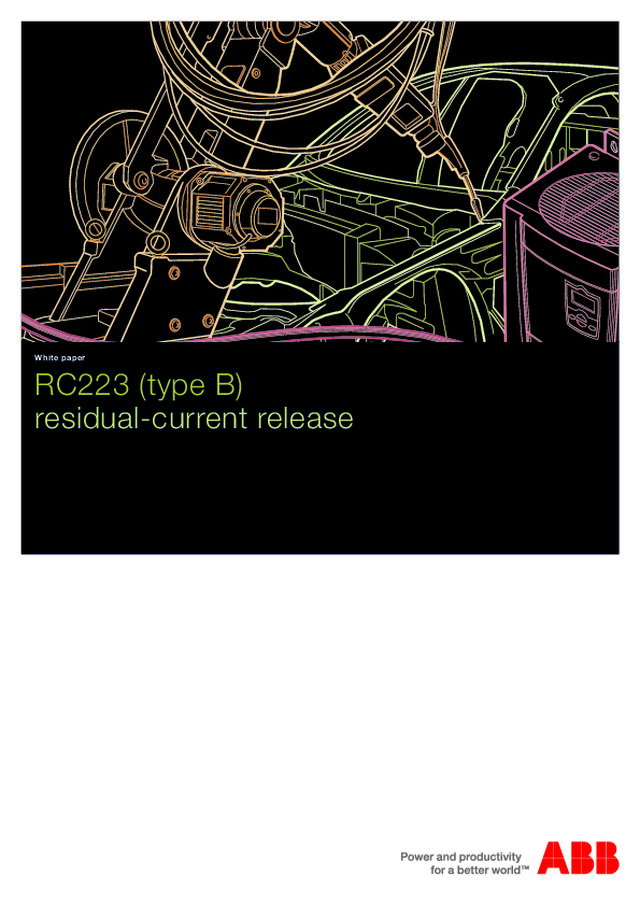

White paper RC223 (type B) residual-current release RC223 (type B) residual current release Index 1. Generals......................................................................... 2 2. Application description . .................................................. 3 2.1 Applications..........................................................................3 2.2 Application examples.. ...........................................................4 2.3 How does an RC223 operate?...............................................6 3. Application indications..................................................... 7 3.1 Technical characteristics........................................................7 3.2 Configuration indications.......................................................7 3.3 Emergency Arrest (EA)...........................................................7 3.4 Operating time and current....................................................8 3.5 "Testing field" section............................................................8 ABB | RC223 (type B) residual current release 1 1. Generals The RC223 residual current release, which can be combined with the Tmax T3, T4 four-pole circuit-breakers in the fixed or plug-in version, is the most advanced solution in the whole residual current release family for the Tmax range. Apart from the signals and settings typical of the basic residual current release, RC223 also allows the selection of the maximum threshold of sensitivity at the...
