Ficha técnica dos inversores PVS980 1818 a 2000 kVA da ABB

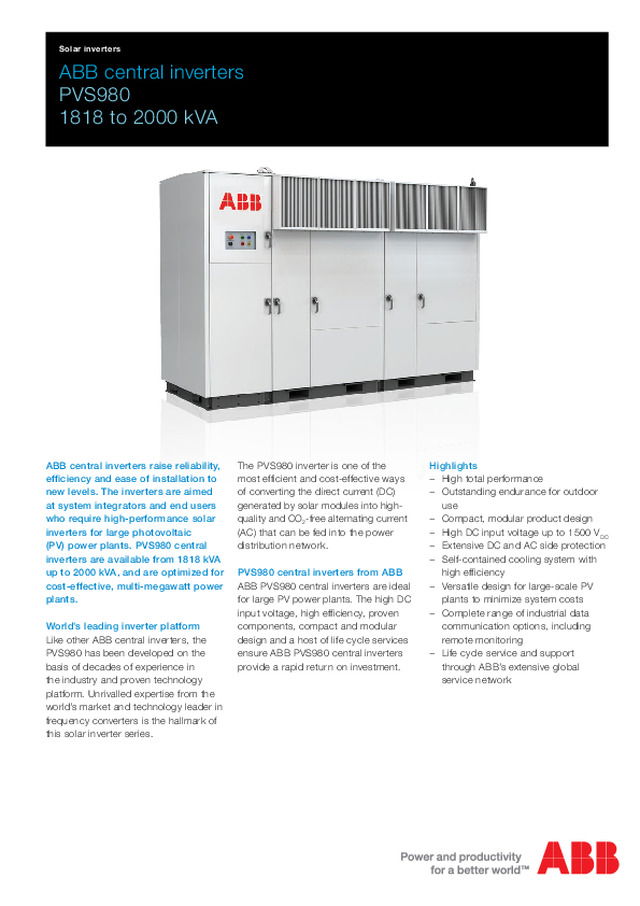

ABB central inverters  PVS980 1818 to 2000 kVA ABB central inverters raise reliability, efficiency and ease of installation to new levels. The inverters are aimed at system integrators and end users who require high-performance solar inverters for large photovoltaic (PV) power plants. PVS980 central inverters are available from 1818 kVA up to 2000 kVA, and are optimized for cost-effective, multi-megawatt power plants. World’s leading inverter platform Like other ABB central inverters, the PVS980 has been developed on the basis of decades of experience in the industry and proven technology platform. Unrivalled expertise from the world’s market and technology leader in frequency converters is the hallmark of this solar inverter series.  The PVS980 inverter is one of the most efficient and cost-effective ways of converting the direct current (DC) generated by solar modules into high-quality and CO 2 -free alternating current  (AC) that can be fed into the power distribution network. PVS980 central inverters from ABB ABB PVS980 central inverters are ideal for large PV power plants. The high DC input voltage, high efficiency, proven components, compact and modular design and a host of life cycle services ensure ABB PVS980 central inverters provide a rapid return on investment. Highlights   − High total performance   − Outstanding endurance for outdoor  use   − Compact, modular product design   − High DC input voltage up to 1500 V DC   − Extensive DC and AC side protection   − Self-contained cooling system with  high efficiency   − Versatile design for large-scale PV  plants to minimize system costs   − Complete range of industrial data  communication options, including remote monitoring   − Life cycle service and support  through ABB’s extensive global service network  Solar inverters

Maximum energy revenues ABB central inverters have a high total efficiency. Precise, optimized system control and maximum power point tracking (MPPT) combine with the unit’s highly efficient power converter design to deliver the maximum energy from the PV modules to the power distribution network. For end users, this generates the highest possible revenues from the energy sales. Self-contained, low-maintenance cooling system PVS980 inverters feature a proven closed loop cooling system used in other ABB industrial applications. This innovative, truly low-maintenance cooling solution is designed for demanding applications and harsh environments, cutting maintenance costs and ensuring outstanding endurance.   Compact and modular design PVS980 inverters are designed for fast and easy installation. The industrial design and modular platform provide a wide range of options, such as remote monitoring, fieldbus connection and modular and flexible DC input connections. The integrated DC saves space and costs as the solar array junction boxes can be connected directly to the fused busbars in the DC cabinet. PVS980 inverters are customized for the needs of end users and will be available with short delivery times. Versatile design for large-scale PV plants to minimize system costs ABB’s PVS980 central inverter enables system integrators to design PV power plants that use the optimum combination of inverters with different power ratings. Equipped with extensive electrical and mechanical protection, the inverters are engineered to provide a long and reliable service life of at least 25 years.  Advanced grid support features The PVS980 software includes all the latest grid support and monitoring features, including active power limitation, fault ride through (FRT) with current feed-in and reactive power control. Active and reactive power output can be controlled by an external control system or automatically by the inverter. All grid support functions are parameterized, allowing easy adjusting for local utility requirements. ABB central inverters are also able to support grid stability at night by providing reactive power with the DC input disconnected. ABB solar inverters | Product flyer for PVS980  Maximum energy revenues

ABB central inverters PVS9801818 to 2000 kVA High total performance ABB self-contained cooling  system   − High efficiency   − Low auxiliary power consumption   − Innovative controlled cooling   − Efficient maximum power point tracking   − Long and reliable service life of at least 25 years    − Closed loop cooling system based on phase transition  and thermosiphon technology   − Liquid-cooled inverter power ratings with the simplicity  of air cooling    − No fillable liquids, pumps, valves, inhibitors or leaks    − Low maintenance Outstanding endurance for  outdoor use Versatile design for large- scale PV plants   − Water- and dustproof outdoor enclosure   − Designed to withstand the toughest environments   − Long and reliable service life following the ABB life cycle  model   − Integrated DC connection with variable number of  inputs   − Wide standard option palette for tailoring   − Versatile AC connection methods Modular industrial design  Minimizes system costs   − Compact and easy-to-maintain product design   − Fast and easy installation   − Integrated and flexible DC input section   − 1500 V DC  system voltage   − Wide ranged and highly efficient MPPT algorithm   − Integrated protection to minimize external components   − Fast and easy installation and commissioning Life cycle service and support Wide communication options   − ABB’s extensive global service network   − Extended warranties   − Service contracts   − Technical support throughout the service life   − Complete range of industrial data communication  options for SCADA connections   − Ethernet/Internet Protocol   − Remote monitoring Product flyer for PVS980 | ABB solar inverters

Technical data and types Type designationPVS980-58 -1818kVA-I -1909kVA-J -2000kVA-K 1818 kVA 1909 kVA 2000 kVA Input (DC) Maximum input power   (P PV,max )  1) 2910 kWp 3055 kWp 3200 kWp DC voltage range, mpp (U DC, mpp ) at 50 °C 850 to 1100 V 893 to 1100 V 935 to 1100 V DC voltage range, mpp (U DC, mpp ) at 35 °C 850 to 1500 V 893 to 1500 V 935 to 1500 V Maximum DC voltage (U max (DC) ) 1500 V 1500 V 1500 V Number of MPPT trackers 1 1 1 Number of protected DC inputs 8  2)  to 24 (+/-) 8  2)  to 24 (+/-) 8  2)  to 24 (+/-) Output (AC) Nominal power (S N(AC) )  3) 1818 kVA 1909 kVA 2000 kVA Maximum output power (S max (AC) )  4) 2000 kVA 2100 kVA 2200 kVA Nominal AC current (I N(AC) ) 1750 A 1750 A 1750 A Nominal output voltage (U N(AC) )  5) 600 V 630 V 660 V Output frequency 50/60 Hz 50/60 Hz 50/60 Hz Harmonic distortion, current  6) 3% 3% 3% Distribution network type  7) TN and IT TN and IT TN and IT Efficiency Maximum  8) 98.8% 98.8 % 98.8% Euro-eta  8) 98.6% 98.6 % 98.6% Power consumption Own consumption in operation 2500 W 2500 W 2500 W Standby operation consumption 225 W 225 W 225 W Auxiliary voltage type internal internal internal Dimensions and weight Width/Height/Depth, mm (W/H/D) 3180/2366/1522 3180/2366/1522 3180/2366/1522 Weight appr.  3850 kg 3850 kg 3850 kg 1)   DC/AC ratio over 1.6 might decrease time  between maintenance intervals    2)   As standard    3)   At 50 °C    4)   At 35 °C    ABB central inverters PVS9801818 to 2000 kVA 5)    ±10%    6)   At nominal power    7)   Inverter side must be IT type    8)   Without auxiliary power consumption at min U DC   Product flyer for PVS980 | ABB solar inverters

Product flyer for PVS980 | ABB solar inverters ABB PVS980 central inverter design and power network connection 9)   Excluding underpressure testing  10)   -40 °C as option    11)   Power derating after 50 °C    12)   Derating above 1000 m    Control   and monitor Control   and monitor Filter Filter EMC filter EMC filter EMC filter EMC filter 3 3 Technical data and types Type designationPVS980-58 -1818kVA-I -1909kVA-J -2000kVA-K 1818 kVA 1909 kVA 2000 kVA Environmental limits Degree of protection IP65  9) /Type 4X Ambient temp. range (nom. ratings)  10) -20 °C to +50 °C Maximum ambient temperature  11) +60°C Relative humidity 5% to 100% Maximum altitude (above sea level)  4000 m  12) Maximum noise level 88 dBA  13) Protection Ground fault monitoring  Yes Grid monitoring Yes Anti-islanding Yes DC reverse polarity Yes AC and DC short circuit and overcurrent Yes AC and DC overvoltage and temperature Yes User interface and communications Local user interface ABB local control panel Analog inputs/outputs Extendable as option Digital inputs/relay outputs Extendable as option Fieldbus connectivity Modbus, Profinet, Ethernet  14) Product compliance Safety and EMC  15) CE conformity according to LV and EMC directives Certifications and approvals  15) IEC, UL, CEI, RD, EDF, P.O. 12.3, BDEW, GOST, AS  Grid support and grid functions Reactive power compensation  16) , Power reduction, LVRT, Anti-islanding 13)   At partial power typically 75 dBA  14)   More communication options as engineered option 15)   Approvals pending, contact ABB for more information 16)   Also at night    PVS980-58-2000kVA-K PVS980-58-2000kVA-K

Data communication principle for ABB PVS980 central inverters 3AXD50000027473 REV E EN 8.6.2016 For more information please contact  your local ABB representative or visit:  www.abb.com/solarinverters www.abb.com  © Copyright 2015 ABB. All rights reserved.  Specifications subject to change without notice. Options   − Integrated and flexible DC input  extension   − AC breaker   − AC busbar interface   − DC grounding (negative and positive)   − Fieldbus and Ethernet connections   − Current measurement to each DC  input   − High altitude version   − Warranty extensions   − Solar inverter care contracts Related products   − Medium voltage station (transformer  and switchgear) as outdoor or containerised solution    − String monitoring junction boxes   − Remote monitoring solutions  Support and service ABB supports its customers with a dedicated service network in more than 60 countries and provides a complete range of life cycle services from installation and commissioning to preventative maintenance, spare parts, repairs and recycling.   PV  strings String monitoring  box PVS980 central inverter Communication network PVS980-MVP ABB transformer ABB SafeRing switchgear MV grid connection SCADA Local service PC Mobile Web Database Internet Fieldbus I/O Modbus Electricity Data Remote  monitoring
