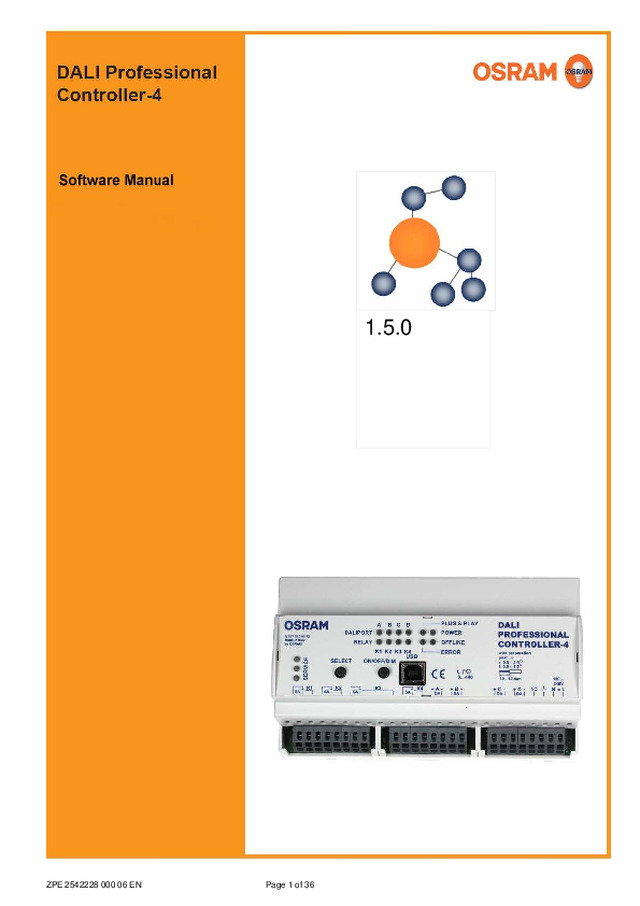

OSRAM DALI Pro - Manual de Software 1.5.1 e superior (3.3 MB)

LEDVANCE

OSRAM DALI Pro - Manual de Software 1.5.1 e superior (3.3 MB)

Publicado: 18 de abril de 2018 · Categoria: Technical Papers

Deste documento

1.5.0 ZPE 2542228 000 06 EN Page 1 of 36 Softwaremanual DALI PROFESSIONAL Controller Description of Application Program Introduction The OSRAM DALI PROFESSIONAL System is a lighting control based on standartized DALI Bus according to IEC 62386 -> see : http://www.dali-ag.org/ With this a flexible addressable digital lighting control can be built-up. The central component is the DALI PROFESSIONAL CONTROLLER with 4 DALI lines. These DALI lines can be equipped with DALI suitable ECG for lamp operation and DALI operation units / sensors. Detailed product descriptions are available for : DALI Controller DALI Pushbutton Coupler DALI Sensorcoupler + Sensors LS/PD DALI HIGHBAY Adapter + Sensor HIGHBAY or VISION ZPE 2542228 000 06 EN Page 2 of 36 DALI LS/PD LI DALI e:bus Gateway e:bus Glasstouch 6T, 12T, 6TR e:bus Touchpanel Use with PC, first steps Software Installation Load software from www.osram.com/software Extract the .zip file Install DALI Professional system software by starting 'Setup OSRAM DALI Professional vx.x.x.x.exe' Default directory for the software : C:\Program Files\OSRAM\DALI Professional\ Establish USB connection Controller - PC Start program with desktop icon or by Start / Programs / OSRAM / DALI Professional / OSRAM DALI Professional Start firmware update to controller if requested by the software (latest firmware is already automatically stored on PC with software installation) Supported Windows Versions : successfully tested with Windows XP, Windows Vista,...
