Panorama Smartlink

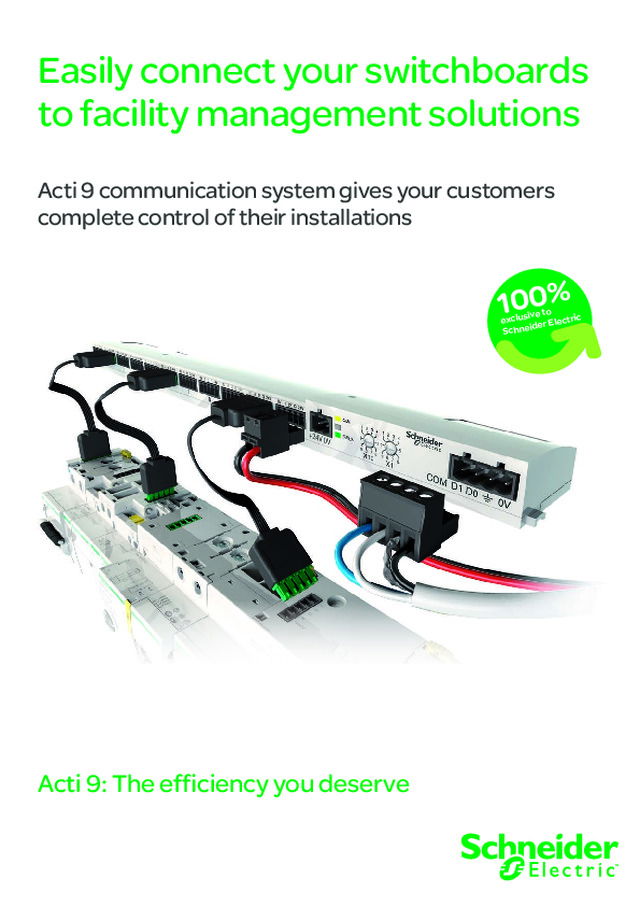

Acti 9: The efficiency you deserve Easily connect your switchboards  to facility management solutions Acti 9 communication system gives your customers   complete control of their installations 100% exclusiv e to  Schneider Electric

2 ‘Now we can monitor and control  power consumption on each floor,  production zone, office unit, and  workshop in our site’.

3 It’s never  been simpler  to integrate  electrical  distribution   into facility  management  systems A simple, powerful panel communication  system like you’ve never seen before Its communication  system makes  Acti 9™ smart,  ready-to-connect,  efficient, and safe Optimize  energy consumption, enable energy efficiency Collect and analyze data from energy meters in each  • area, for each type of load or circuit Automate, schedule, and control operation of loads to  • optimize energy consumption Increase continuity of supply, power availability Get immediate, precise warning in case of power loss • Make evolution of your installation quick and easy • Allocate costs Meter energy use, from large areas or sectors to  • individual loads ... and it’s never been easier to connect!

4 Smart Centralize control, collect energy meter data with just a simple, ready-to- • connect communication module. Large diversity of data available to universal Modbus protocol. • Efficient One-click, prefabricated wiring for comprehensive communication between  • your distribution panel and any facility management system.   Safe Reliable, error-proof manufacturer guaranteed connections • EMC tested for immunity, radiated, and conducted safety.  • Acti 9 communication system Meets the challenge of all your applications Interior and exterior lighting, load monitoring, and cost allocation  Protection  monitoring Load control   switching 11 input/output  channels Acti 9 Smartlink: the heart of the system Available only from  Schneider Electric™

5 Ready to connect to any facility management solution Monitor and adjust specific loads   Detailed load control, reduced downtime, and   accurately planned maintenance  Energy  metering Modbus network Modbus address   encoders 24V DC   power supply Modbus RS-485   connection Quick and easy  control wiring  enables complete  control of your  installation Energy  management system Programmable logic controllers Building  management  system Internet

6 Unlike conventional distribution panels that require extensive wiring and  communication cabling, Acti 9 integrates easily into any existing facility  management system. Its flexibility reduces project and installation costs,  and provides the most reliability, extendability, and upgradeability to your  customers. With robust Modbus communication, the Acti 9 communication  system can adapt to any future developments, and becomes a key element  in your energy efficiency strategies. As flexible, reliable, and extendable as you need it to be Plug and play Automatic configuration of RS485   at first run connection Smart, and ready to be connected

7 Acti 9 Smartlink auto-adapts, presenting clear, concise data. • Can communicate with any 24V-compatible devices. • Easy-to-read Modbus communication tables streamline • commissioning. Open and universal 100% compatible Fully compatible with any facility management system,  control mode flexibility adapts easily to requirements Easy to integrate Designers •  can dramatically reduce building design and installation costs without detailed wiring.Makes any panel reconfiguration simple. • Daisy chain connections between all your • switchboards, thanks to Modbus communication. Reduce project costs with a simple, evolutive system Smart for system design Acti 9 revolutionizes communication in  distribution panels Easily add any devices when it’s needed. • Upgrade easily to suit any building usage • evolution. Designed for step-by-step investments

8 Easy control wiring  with one simple device the amount of   time you save   with the Acti 9  communication system 40%

9 Control wiring has never been so  flexible and fast to implement No need for complex wiring or in/out terminal blocks crowding the switchboard. Acti 9 Smartlink has one- click, prefabricated connectors for fast and easy data transmission support in your distribution panel.   Most efficient for your time   Easy implementation and maintenance for  maximum comfort and peace of mind Efficient Maintenance personnel can: Enjoy legible, easy-to-understand • control wiring. Confidently plan onsite maintenance times. • Schedule interventions,  maintenance accurately Save time to operate and maintain Less control wiring and cabling • Error proof connections • No interface relays • Automatic generation of as-built control • description diagrams Save 40% of time spent on   control wiring Operators can: View real-time, higher-resolution data on • outgoers, to minimize downtime on each circuit. Instantly find the location of faulty outgoers. • Perform preventive maintenance to maximize • uptime with information like number of switchings or running hours for controlled loads. Improve power availability,  decrease operations costs

10 Safe and reliable for the lifetime of your installation

11 Complete peace of mind for  the lifetime of your installation The Acti 9 communication system guarantees safe, reliable operation for the lifetime of your  installation. It is specifically designed to integrate safely into final distribution panels, and gives your  customers the greatest level of protection and control, even in demanding environments. With the Acti 9 communication system, special attention was given to electromagnetic compatibility (EMC). No matter what type of application, you can trust the integrity of data, and know precisely what is happening on your circuits at all times. Trust your installation status Designers can trust that all Acti 9 devices are fully tested and compliant with industry regulations. The Acti 9 communication system is based on reliable 24V low-level contacts that guarantee data transmission will not alter over time. Guarantee data integrity for   the life of your installation Fully compliant  60947-5-1, IEC 60947-5-4,  IEC 61131-2 EMC tested for  immunity, radiated,  and conducted   safety Absolutely safe A fully EMC-certified   communication system 100% reliability The Acti 9  communication  system is high  quality without  compromise

Smart functions integrated: Energy counting from pulses • Average power calculation • Event counting • Running hours • Modbus processing interface providing: Circuit breaker status • Energy meter output • Contactor/impulse relay control   • and status ©2011 Schneider Electric. All Rights Reserved. Schneider Electric, Acti 9, and Reflex are trademarks owned by Schneider Electric Industries SAS or its affiliated companies. All other trademarks are property of their respective owners. Design: Global Marketing, Communications Strategy and Design 998-4765_GMA Schneider Electric Industries SAS Head Office35 rue Joseph Monier92500 Rueil Malmaison Cedex- FranceTel.: +33 (0)1 41 29 70 00www.schneider-electric.com Introducing the Acti 9 communication system   Circuit breaker auxiliary   Pre-cabled links   Energy meters Pre-cabled for error-proof connections • Available in various lengths • DIN rail mounted • Designed for metering  • active energy consumed by a single- or 3-phase electric circuit   Integrated control circuit breaker   Circuit breaker remote control 24VDC and 230 VAC • Command - Open/close position - Tripping indication - Various configurable local and  • remote control combinations Remote opening/closing of MCBs • Remote control resetting after tripping • 24VDC and 230VAC command   • and MCB positionVarious configurable local/remote  • control combinations 24V DC low-level contacts • CB open/closed position    - CB tripping indication   - iOF+SD24, OF+SD24 iEM2000T iEM3110 Reflex™ iC60 iATL 24 RCA iC60 iACT 24 24V: • Command to contactor   - Open/closed contactor position   - 230V command to contactor • Various configurable local/remote     - control combinations 24V: • Command to impulse relay   - Open/closed impulse relay position   - 230V command to impulse relay • Various configurable local/remote     - control combinations   Contactor auxiliary   Acti 9 Smartlink: The heart of the system   Impulse relay auxiliary Available only from  Schneider Electric
