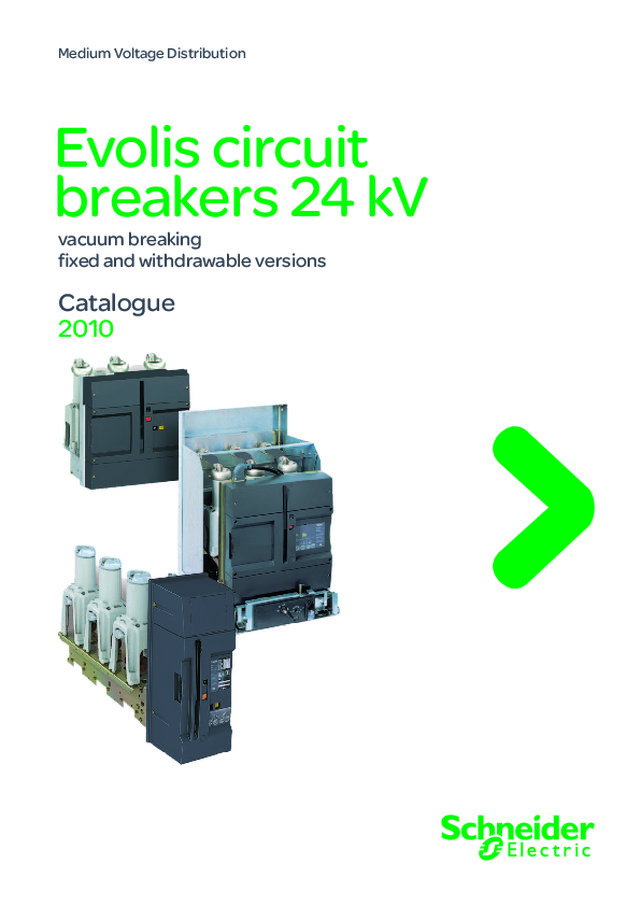

Medium Voltage Distribution Evolis circuit breakers 24 kV vacuum breaking xed and withdrawable versions Catalogue 2010 Evolis circuit breakers 24 kV AMTED307011EN.indd General contents General presentation 2 Panorama 8 Evolis 24 kV xed, frontal version 11 Evolis 24 kV withdrawable, frontal version 25 Evolis 24 kV xed, lateral version 45 EVOset 24 kV xed, lateral version 57 1 Evolis General presentation Circuit breakers adapted to your needs Evolis: a range of circuit breakers that takes account of your electrical installations requirements today and in the future. Description Evolis: a range of vacuum-type circuit breakers from 7.2 kV to 24 kV, combining easy selection and a comprehensive offer: b a fixed, frontal or lateral version b a withdrawable, frontal version with a circuit breaker and its cradle or its cassette b a fixed, lateral version equipped with an integrated protection chain b separately delivered accessories. The Evolis circuit breaker is operated via a spring mechanism that gives an operating speed that is independent of the operator and that does not require an auxiliary power supply. When the operating mechanism is motorized the circuit breaker can include telecontrol functions and carry out rapid reclosing cycles. The various circuit breaker versions are easy to integrate in a cubicle environment. An Installation Guide details the required procedure. Applications Evolis is intended for use in medium voltage network applications, in new installations or...
