Catálogo Disjuntor de Média Tensão a gás - SF

Schneider Electric

Catálogo Disjuntor de Média Tensão a gás - SF

Publicado: 2 de setembro de 2013 · Categoria: Catálogos

Deste documento

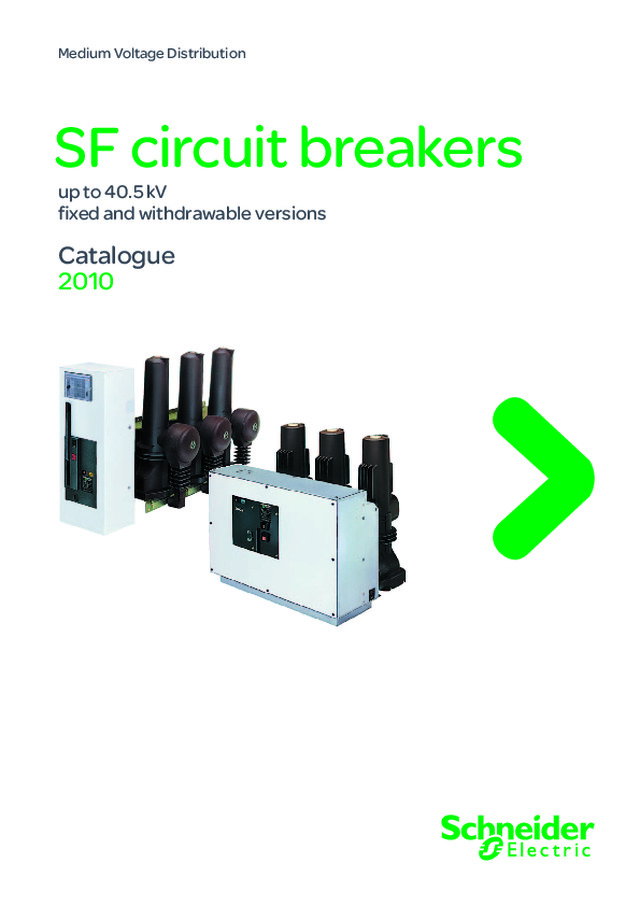

Medium Voltage Distribution SF circuit breakers up to 40.5 kV xed and withdrawable versions Catalogue 2010 SF circuit breakers SF1 circuit breakers fixed version from 12 kV to 36 kV PE56503 One range of comprehensive and proven three-pole circuit breaker units for indoor installation using SF6 technology. Both compact and dependable, it is ideally suited to the most demanding applications. This circuit breaker range meets IEC standard 62271-100. PE56501 SF2 circuit breakers fixed version from 24 kV to 40.5 kV PE56502 SF F400 circuit breakers withdrawable version from 24 kV to 40.5 kV 2 AMTED304010EN.indd General contents AMTED304010EN.indd General presentation 2 Panorama 5 SF1 and SFset circuit breakers xed version 7 SF2 circuit breakers xed version 25 SF F400 circuit breakers withdrawable version 35 1 General presentation SF circuit breakers The advantages of proven technology With over 37 years industrial experience in SF6 techniques and over 300,000 installed devices throughout the world, Schneider Electric is today one of the foremost manufacturers of SF6 switchgear. Schneider Electric has developed a wide range of high performance and reliable devices operating faultlessly on all 5 continents. Continuously increasing its performance, the company maintains a very high level of innovation in its offer. Safety The breaking medium is sulfur hexafluoride (SF6) used at low pressure. The insulating enclosure containing the circuit breaker pole(s) is equipped with a safety...
