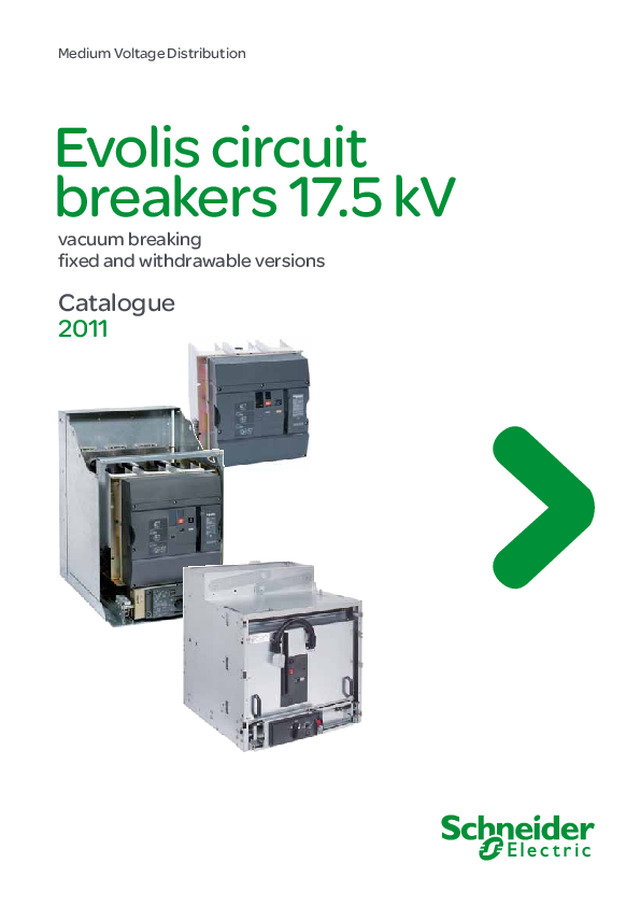

Medium Voltage Distribution Evolis circuit breakers 17.5 kV vacuum breaking fixed and withdrawable versions Catalogue 2011 Evolis circuit breaker 17,5 kV AMTED307010EN.indd General contents General presentation 2 Panorama 8 Evolis 17.5 kV fixed version 11 Evolis 17.5 kV withdrawable version in NEX cradle 31 Evolis 17.5 kV withdrawable version in MC cassette 53 Evolis HP withdrawable version in MC cassette 73 1 Evolis General presentation Circuit breakers adapted to your needs Description Evolis: a range of circuit breakers that takes account of your electrical installations requirements today and in the future. Evolis: a range of vacuum-type circuit breakers from 7.2 kV to 24 kV, combining easy selection and a comprehensive offer: bb a fixed, frontal or lateral version bb a withdrawable, frontal version with a circuit breaker and its cradle or its cassette bb a fixed, lateral version equipped with an integrated protection chain bb separately delivered accessories. The Evolis circuit breaker is operated via a spring mechanism that gives an operating speed that is independent of the operator and that does not require an auxiliary power supply. When the operating mechanism is motorized the circuit breaker can include telecontrol functions and carry out rapid reclosing cycles. The various circuit breaker versions are easy to integrate in a cubicle environment. An Installation Guide details the required procedure. Applications Evolis is intended for use in medium voltage network...
