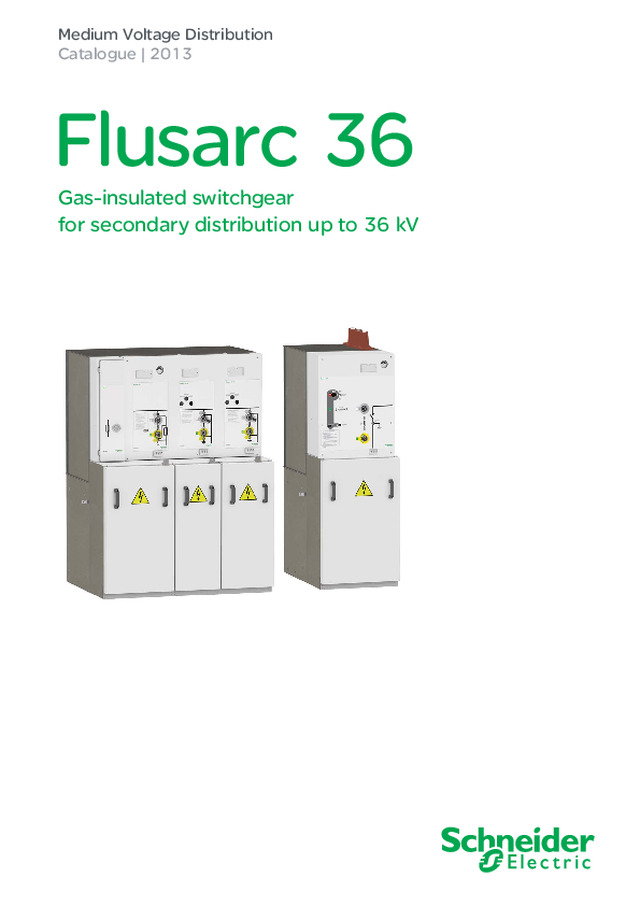

Medium Voltage Distribution Catalogue | 2013 Flusarc 36 Gas-insulated switchgear for secondary distribution up to 36 kV 2 NRJED312357EN Flusarc 36 NRJED312357EN General contents Presentation 5 Unit characteristics 11 Dimensions 31 Connection and installation 41 Accessories 47 Electrical diagrams 57 3 4 NRJED312357EN Presentation NRJED312357EN Contents General description 6 Advantages 7 Applications 8 Standards and operating conditions 10 5 Presentation General description DM102666 Flusarc 36 Flusarc 36 is a range of SF6 gas-insulated switchgear for medium-voltage power distribution up to 36 kV. It is designed for secondary substations on ring or radial networks of energy distributors and for wind-power and photovoltaic applications. Small in size, Flusarc switchgear fits easily in prefabricated substations, kiosk substations and wind towers. Featuring gas-insulated technology, it has an extended service life and very low maintenance costs even in the harshest environments. Flusarc 36 offers a wide range of functions based on switch-disconnectors, vacuum circuit breakers, switch-disconnector fuse combinations, earthing switches and metering units. Flusarc 36 switchgear comes in two ranges: modular or compact. A few versions of the compact range are available for outdoor applications. Reduced height versions are available upon request. Examples of Flusarc 36 configurations: a 3-function compact unit (left) and a modular unit (right) Modular range Modular functional units The...
