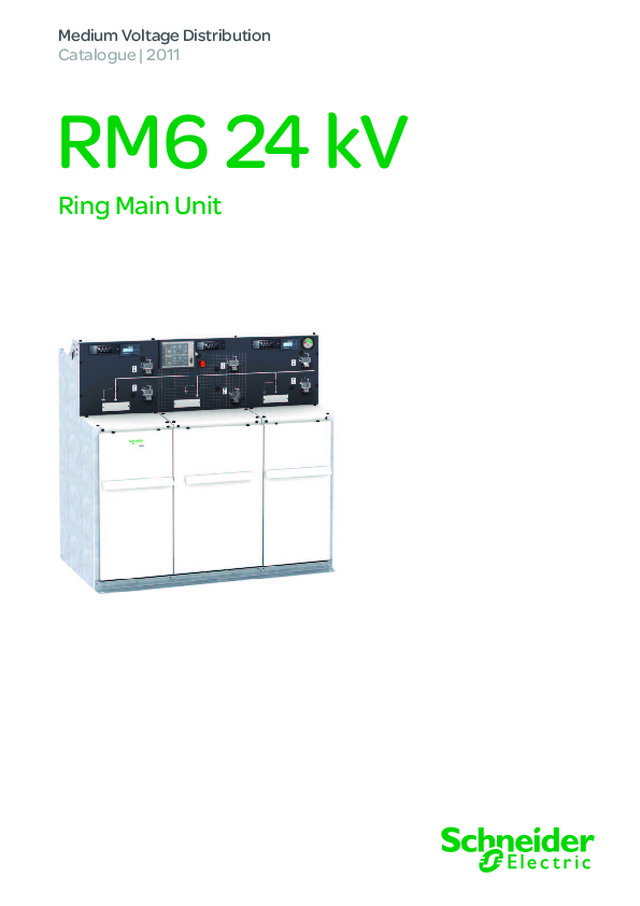

Catálogo Painel de MT: RM6

Schneider Electric

Catálogo Painel de MT: RM6

Publicado: 4 de junho de 2014 · Categoria: Catálogos

Deste documento

Medium Voltage Distribution Catalogue | 2011 RM6 24 kV Ring Main Unit RM6 range AMTED398032EN.indd Contents Presentation 3 The RM6 range 11 Unit characteristics 17 Network remote control 37 Accessories 45 MV connection 53 Installation 59 Order form 65 1 2 AMTED398032EN.indd Presentation AMTED398032EN.indd Contents Applications 4 Range advantages 6 Experience of a world leader 8 Protecting the environment 9 Quality - Standards 10 3 Presentation Applications The RM6 can be adapted to meet all Medium Voltage power distribution needs, up to 24 kV. The RM6 is a compact unit combining all MV functional units to enable connection, supply and protection of transformers on an open ring or radial network: b by a fuse-switch combination, up to 2000 kVA b by a circuit breaker with protection unit, up to 8000 kVA. MT55146 The switchgear and busbars are enclosed in a gas-tight chamber, filled with SF6 and sealed for life. HV/MV substation DE59760 HV/MV substation MT55147 NE-IQI NE-IIDI 4 DE-I DE-D DE-Mt DE-BC RE-II MT55148 NE-IDI AMTED398032EN.indd Presentation Applications A complete range, enabling you to equip MV network points, and enhance electrical power dependability. Operating a distribution network sometimes requires switching points in addition to the HV/MV substations, in order to limit the effect of a fault on the network. The RM6 offers a choice of solutions to make 2, 3 or 4 directional connections b with line protection by 630 A circuit breakers b with network switching by...
